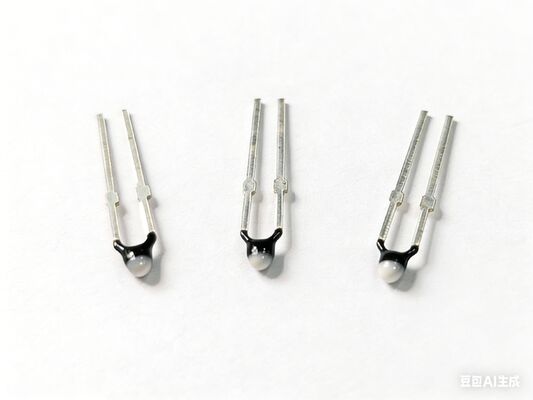

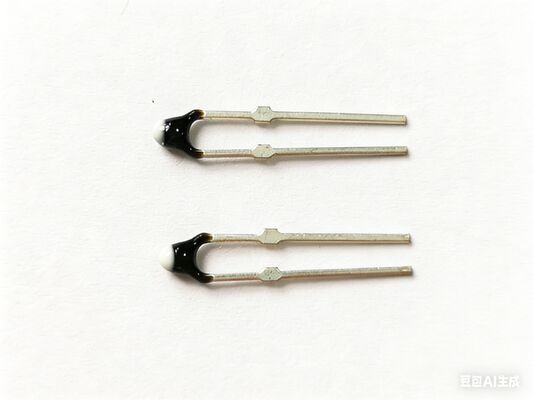

0.5 Tin Plated 42 Alloy Lead Wire Epoxy Thermistor
Produktdetails:
| Herkunftsort: | China |
| Markenname: | Hefei Minsing |
| Zertifizierung: | IATF16949/ISO9001/CE/RoHS |
| Modellnummer: | MF5A-3T |
Zahlung und Versand AGB:
| Min Bestellmenge: | 500 Stück |
|---|---|
| Preis: | negotiable |
| Verpackung Informationen: | Schüttgut |
| Lieferzeit: | 2-10 Werktage |
| Zahlungsbedingungen: | T/T |
| Versorgungsmaterial-Fähigkeit: | 50 Million Stücke pro Jahr |
|
Detailinformationen |
|||
| Kopfmaterial: | Epoxidharz | Anschlusskabel: | 0,5 verzinnte 42-Legierung |
|---|---|---|---|
| Kopfgröße: | Φ2,4×Φ3,7mm | Drahtlänge: | 17mm |
| R25℃: | 0.5KΩ-2000KΩ | B-Wert: | 3000K-4500K |
| R Toleranz-: | ±1 %, ±2 %, ±3 %, ±5 % | B-Toleranz: | ±0,5 % bis ±3 % |
Produkt-Beschreibung

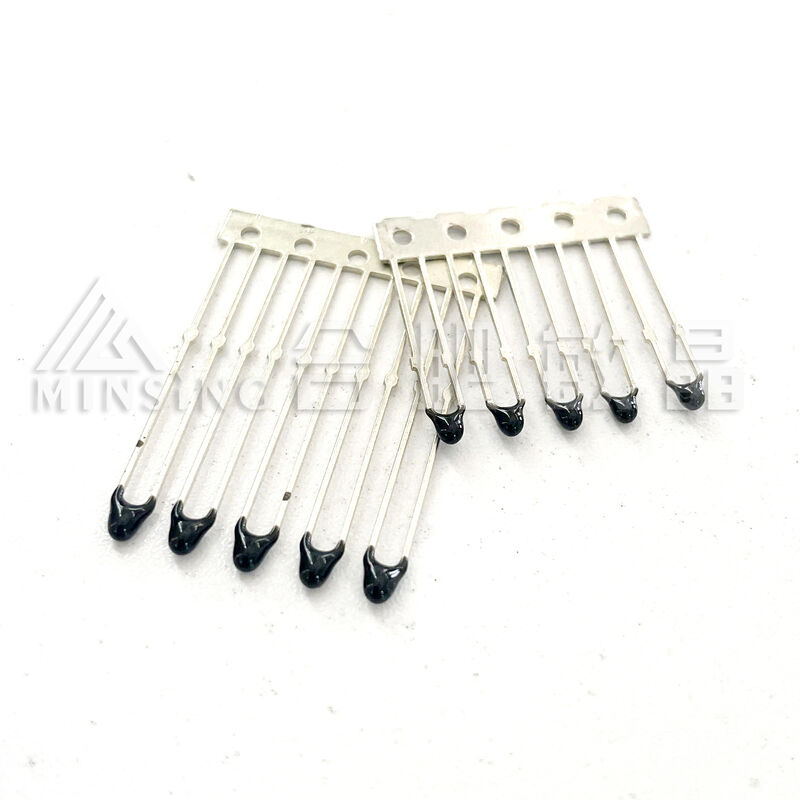

103AT-2 Series Epoxy Thermistor , 0.5 Tin Plated 42 Alloy Lead Wire with Tie Bar, Uniform Shape
Product Feature:
Uniform shape facilitates automated assembly / Long term reliability
Application:
Office automation, measuring instruments, controllers, mobile devices,battery chargers, battery packs,
fan motors, home electronics, HVAC equipment, solar systems, security, thermometers, automotive,
vending machines, refrigerated display cases, agricultural equipment
Caution:
• When bending the lead wires using for example a radio plier make sure to have a minimum distance from the
sensor head of 3 mm.
• Do not apply a mechanical load of more than 2 N in the way depicted in Fig. 1 below. The variation of the load
direction should be less then 0.3 mm (see Fig. 2).
